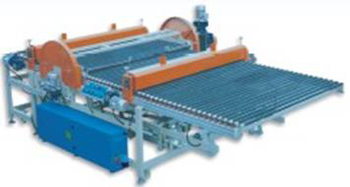

The ZZ series automatic tile turn-over table, one of the auxiliary machines for tile presses, functions to take over the pressed tiles and automatically accomplished the tasks of tile turn-over, dust sweeping and delivery. All series tile turn-over table is isolated controlled by PLC.

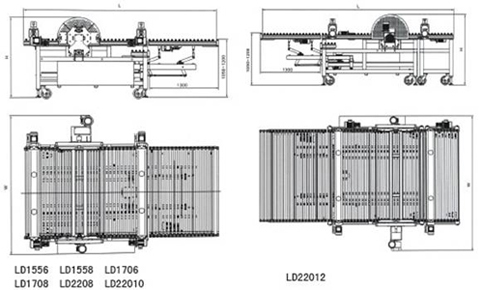

Technical Parameters
| Project model | Press model | Max. tile width (mm) | Max. tile thickness (mm) | Telescopic length of elevator(mm) | Max. tile length(mm) | Distance between rollers (mm) | Roller diameter (mm) | Linear speed of roller tables (m/min) | Linear speed of turn-over tables (m/min) | Tile capacity (cycles/min) | Total length and structure (mm) | Size (LxWixH) |
| ZZ1555 (1650roller) | ZZ1000 | 1500 | 20 | 1300 | 550 (turning table660) | 70 | 38 | 5~26 (inverter) | 5~24 (step less) | 16 | 3400 (integral) | 3400×2700×1730 |
| ZZ1556 (1650 roller) | ZZ1300 | 1550 | 20 | 1300 | 660 (turning table750) | 70 | 38 | 5~26 (inverter) | 5~24 (step less) | 16 | 4200 (separate) | 4200×2700×1700 |
| ZZ1706 (1800 roller) | ZZ1600 (optional) | 1700 | 20 | 1300 | 660 (turning table 750) | 70 | 38 | 5~26 (inverter) | 5~24 (step less) | 16 | 4200 (separate) | 4200×2850×1700 |
| ZZ1558 (1650 roller) | ZZ4000 | 1550 | 20 | 1300 | 880 (turning table 980) | 80 | 38 | 5~17 (inverter) | 3.5~16 (step less) | 16 | 4200 (separate) | 4200×2700×1700 |
| ZZ1708 (optional) (1800 roller) | 1700 | 4200×2850×1700 | ||||||||||
| ZZ2208(2300 roller) | ZZ7200 | 2200 | 20 | 1300 | 880 (turning table 1020) | 90 | 45 | 5~13 (inverter) | 2~9 (step less) | 6 | 4200(separate) | 4200×3600×1700 |
| ZZ22010 (2300 roller) | ZZ7200 | 2200 | 20 | 1300 | 1100 (turning table 1250) | 90 | 45 | 5~13 (inverter) | 2~9 (step less) | 6 | 4500(separate) | 4500×3600×1700 |
| ZZ22012 (2300 roller) | ZZ7200 | 2200 | 20 | 890 | 1350 (turning table 1500) | 90 | 45 | 5~13 (inverter) | 2~9 (step less) | 6 | 5500(separate) | 5500×3600×1700 |
