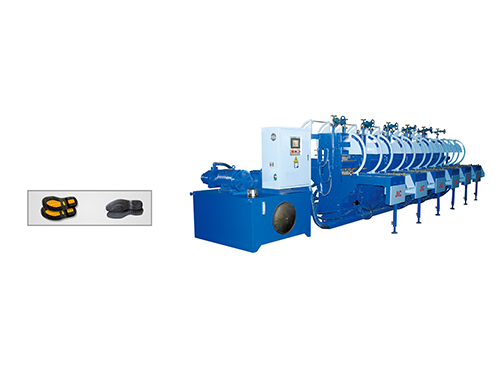

ZZ1506 Rubber Sole Making Machine

ZZ1506 Rubber Sole Making Machine

Features

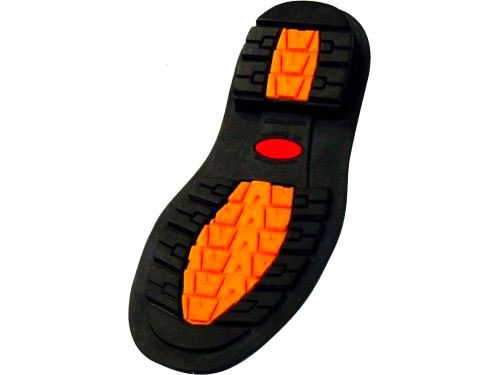

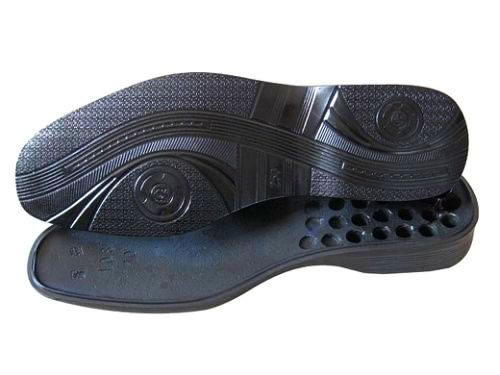

1. RB sole injection machine is specialized in production of one/two color RB shoe soles.
2. Slip form is automatically operated, which makes manipulation easy to female workers.
3. RB sole making machine works in a bi-directional way, and mould can be clamped with its opposite part in safe way.
4. Even only with bottom mould fixed onto the slide board, RB sole injection machine can work, too. It has a high speed to change moulds.
5. Every workstation can work respectively under independent controlling. Operators can choose workstations they need, which reduces electric power wasting.
6. Integrated circuit is applied to control RB sole injection machine. The machine is operated through computer-human interaction interface, making manipulations more convenient.
7. Workstation is designed in a special insulated way, thus thermal energy is saved and work environment is optimized.
8. All valves of hydraulic system are imported from abroad, which makes RB sole injection machine more energy-saving.
9. Sulfuration time is controlled automatically according to size of moulds.
10. Several workstations can be co-operated by just one worker.


Parameters of RB Sole Making Machine

Item Unit Specification
Type   ZZ1506
Raw Material   RB
Heating Source   Electricity, Steam, Heat Transfer Oils
Workstation   6
Layer   2
Distance between Layers mm 180
Mould Size (Max.) mm 400 × 450
Mould Height mm 70-150
Clamping Force T 150
Distance of Slip Form (Max.) mm 760
Main Motor Power KW 15
Mechanical Motor Power KW 5.5
Machine Size mm 7900 × 2400 × 2100
Gross Weight kg 15500


Flimsy fittings are freely attached to RB sole injection machine in case that the old ones go wrong or need to be changed immediately. Warranty period of one year is offered to each machine, during which we can change the inartificially damaged main parts like dynamos, oil motors, oil cylinders etc, but flimsy fittings referred above excluded, into new ones.
