ZZ9106 One Color EVA Injection Molding Machine

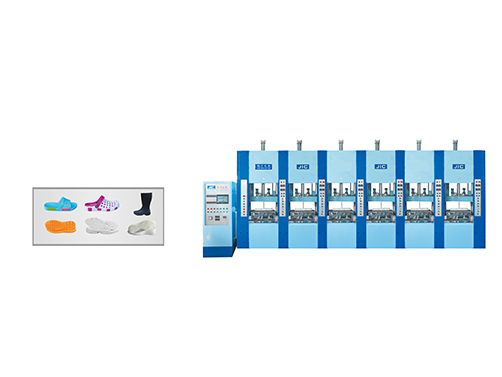

ZZ9106 Single Color EVA Foam Injection Machine

Introduction
One color EVA injection molding machine is equipped with two full-automatically efficient injectors, high-performance mould clamping system and PC control system. Using EVA as raw material, the injection moulding machine can produce soles and various kinds of EVA foaming products.

Features
1. Mould closing system of one color EVA injection moulding machine is designed in rapid open-close way and drove by hydro-pneumatic power. The injection moulding machine has four oil cylinders to equilibrate itself. Pressure for working can reach to 200T.
2. With net-based management, one color EVA foam injection molding machine can be controlled long-distantly. Through industrial PC and PLC, whole controlling system displays powerfully in production.
3. Highly responsive proportional control valve is applied in injection system. Injectable fuel-pump is used to keep high accuracy (2‰ ±) to promise high quality and efficiency.
4. For high anti-jamming capacity, long-distance digital module is used to control temperature system of the one color EVA injection molding machine. High accuracy (0.3 ±) reduces size deviation caused by temperature-control failure.
5. There are two moulds in every workstation, and the two moulds work independently without affecting each other. Besides, they can be interchanged to increase productivity in flexible ways.
Advantages
1. Mould closing system of one color EVA injection moulding machine is designed in rapid open-close way and drove by hydro-pneumatic power. The injection moulding machine has four oil cylinders to equilibrate itself. Pressure for working can reach to 200T.
2. With net-based management, one color EVA foam injection molding machine can be controlled long-distantly. Through industrial PC and PLC, whole controlling system displays powerfully in production.
3. Highly responsive proportional control valve is applied in injection system. Injectable fuel-pump is used to keep high accuracy (2‰ ±) to promise high quality and efficiency.
4. For high anti-jamming capacity, long-distance digital module is used to control temperature system of the one color EVA injection molding machine. High accuracy (0.3 ±) reduces size deviation caused by temperature-control failure.
5. There are two moulds in every workstation, and the two moulds work independently without affecting each other. Besides, they can be interchanged to increase productivity in flexible ways.

Parameters of the One Color EVA Injection Moulding Machine

Project Unit Specifications

Model   9102 9106 9108
Raw Material   EVA EVA EVA
Work Station Number (max) station 2 6 8
Clamping Force T 180 180 180
Mould-opening Stroke mm 350 350 350
Max Mould Size mm 290 × 550 290 × 550 290 × 550
Mould Height mm 100-200 100-200 100-200
Screw Diameter mm ¢60 ¢60 × 2 ¢60 × 2
Screw Speed rpm 0-165 0-165 0-165
Injection Capacity (Max) cm3/cc 930 930 × 2 930 × 2
Injection Pressure kg/cm2 1080 1080 1080
Limit of Temperature point 4 4 4
Barrel Heat Power kW 6 6×2 6×2
Mould Heat Power kW 25.6 76.8 102.4
Hydraulic Motor Power kW 37/32 55/50 55/50
Total Power kW 62/57 131/126 157/152
Oil Tank Size kg/td> 800 1000 1000
Machine Size mm 4680 × 4600 × 2875 8230 × 3800 × 2875 10650 × 4800 × 2875
Machine Weight kg 11000 26000 33000


One color EVA foam injection molding machine and disc feeder of ZZ Co. are controlled through certain pressure proportion. Disc Feeder has various moulds which inject material in the given pressure by control panel, thus it can produce many kinds of items with different materials of various quantities. Linear rails are applied in one color EVA injection moulding machine to promise rapid movement of injectors during operation.
