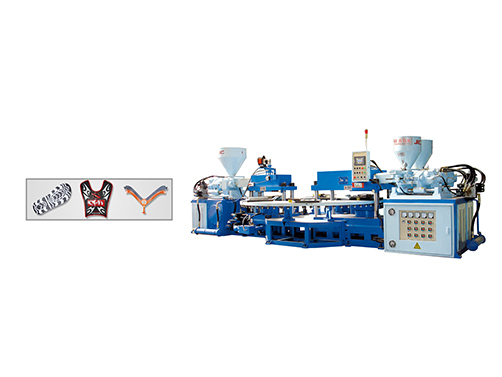

ZZ506BL Three Color PVC Upper and Strap Injection Machine

ZZ506BL Three Color PVC Upper and Strap Injection Machine

Features
1. It is specialized in production of uppers and straps for single/double/three color PVC shoe products, such like slippers, sandals and thin soles.
2. The three color upper and strap injection machine is controlled by PLC in an industrial computer-human interactive interface system.
3. Double proportional hydraulic system is applied to control pressure and flow, which makes operation easier, reasonable and convenient and realizes stable quality of products.
4. Digital measurement makes data accurate.
5. This three color upper and strap injection machine is designed rationally and considerately in operation, so it can work even without professors.
6. It meets high productivity with low energy consuming and human labor.
7. Main machine can be interchanged with auxiliary machine to produce one/two/three color products.
8. Oil cylinder diameter of our three color upper and strap injection machine is 250mm, which is different from the diameter (220mm) of those by other manufacturers. Clamping force of our machines is 80T, 20T larger than that of machines by other manufacturers.
Technical Specifications

Item Unit Specifications
Raw material   PVC
Injection capacity(max) cm³ 300,250 × 2
Injection hydraulic kg/cm2 0-120
Heating power kW 22
Limit of temperature point 4
Screw speed rpm 0-190
Screw diameter mm Φ50, Φ45 × 2
Motor power kW 11 × 2
Clamping force KN 80
Station station 6, 8, 10, 12
Machine size mm 6600 × 2550 × 1800
Weight Kg 8000


Our company is specialized in machines for making soles of slippers, sandals and sneakers in materials of EVA, PVC, TPR, and RB, etc. We have professional designing technology, research, production, and marketing in shoe-making machine field. Our three color upper and strap injection machine applies hydraulic motor and is designed reasonably in an overall layout.
